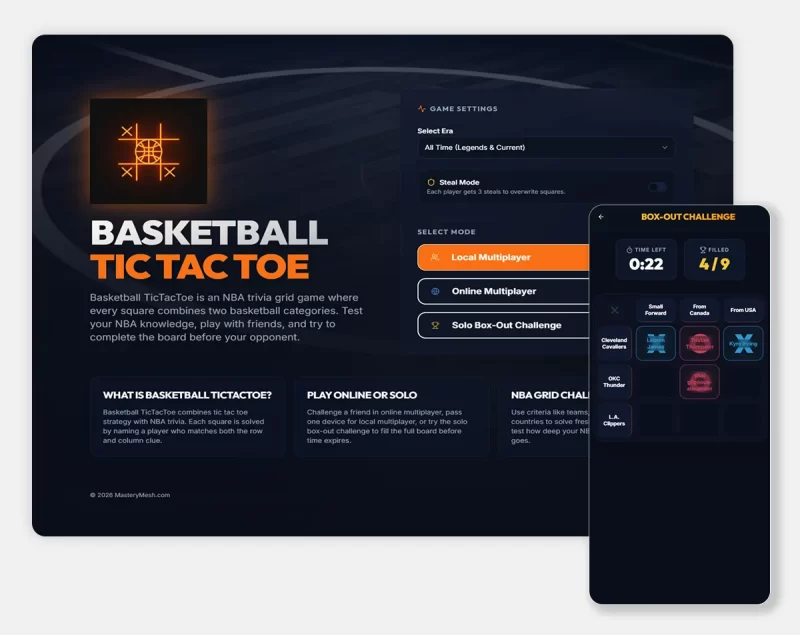

Basketball TicTacToe Online Game

Basketball TicTacToe Online Game
basketball-tictactoe

Overview

Basketball TicTacToe is a pnpm workspace monorepo for an NBA trivia grid game inspired by tic tac toe.

Players fill a 3×3 board by naming real NBA players who match both the row and column criteria for each square.

Stack

  • Monorepo: pnpm workspaces
  • Language: TypeScript
  • Frontend: React, Vite, Tailwind CSS, shadcn/ui, framer-motion
  • Backend: Express 5
  • Validation: Zod, drizzle-zod
  • API codegen: Orval
  • Database: PostgreSQL with Drizzle ORM
  • AI validation: Google Gemini via @google/genai

Workspace Structure

Basketball-TicTacToe/
├── artifacts/
│   ├── api-server/       # Express API server
│   ├── mockup-sandbox/   # Separate Vite sandbox artifact
│   └── ttt-basketball/   # Main React + Vite app
├── lib/
│   ├── api-client-react/ # Generated React Query client
│   ├── api-spec/         # OpenAPI spec + Orval config
│   ├── api-zod/          # Generated Zod schemas
│   └── db/               # Drizzle schema + DB connection
├── scripts/
├── package.json
├── pnpm-workspace.yaml
└── tsconfig.base.json

Game Modes

  1. Local Multiplayer
  2. Online Multiplayer
  3. Solo Box-Out Challenge

Core Features

  • Random NBA trivia grids generated by the backend
  • Optional steal mode
  • Era selection: all, 90s, 2000s, 2010s, modern
  • Fast local validation from curated known intersections
  • Gemini fallback validation with Google Search grounding when needed
  • Online rooms backed by PostgreSQL when DATABASE_URL is configured
  • In-memory online room fallback for local development when DATABASE_URL is missing

Main Routes

  • / home page
  • /local local multiplayer
  • /solo solo challenge
  • /online/lobby create/join online rooms
  • /online/game/:code live online match

API Endpoints

  • POST /api/game/grid generate a solvable 3×3 grid
  • POST /api/game/validate validate a player against row and column criteria
  • POST /api/game/rooms create an online room
  • GET /api/game/rooms/:code get room state
  • POST /api/game/rooms/:code/join join a room
  • POST /api/game/rooms/:code/move make a move
  • GET /api/healthz health check

Local Development

Requirements

  • Node.js 22+ recommended
  • pnpm

Install

pnpm install

Frontend Environment

Create or update:

artifacts/ttt-basketball/.env

VITE_API_URL=http://localhost:5000
GEMINI_API_KEY=your_key_here

Notes:

  • VITE_API_URL is used by the frontend.
  • GEMINI_API_KEY is loaded by the API server through the shared env loader.
  • You can also place env vars in a root .env or artifacts/api-server/.env.

Start Everything

pnpm run dev:ttt

This does all of the following:

  • builds the API server
  • starts the API server on http://localhost:5000
  • starts the Vite frontend on its dev port

Manual Start

Backend:

pnpm --filter @workspace/api-server run build
node --enable-source-maps artifacts/api-server/dist/index.mjs

Frontend:

pnpm --filter @workspace/ttt-basketball run dev

Database Behavior

  • If DATABASE_URL is set, online rooms use PostgreSQL.
  • If DATABASE_URL is not set, online rooms fall back to in-memory storage for local testing.
  • In-memory rooms are lost when the backend restarts.

Validation Behavior

Player validation works in two layers:

  1. Fast local validation using curated intersections in artifacts/api-server/src/lib/nbaData.ts
  2. Gemini validation for cases not covered by the curated dataset

The validator prompt date is generated dynamically at runtime.

SEO and Metadata

The frontend includes:

  • canonical URLs
  • route-level titles and descriptions
  • Open Graph and Twitter metadata
  • JSON-LD structured data
  • robots.txt
  • sitemap.xml
  • llms.txt
  • favicon, Apple touch icon, and web manifest support
